Introduction: The Communication Backbone of the Smart Grid Era

A substation has more than one communication problem. Protection devices must exchange time-sensitive information inside a designed station network, while operators also need measurements, alarms, and authorized access beyond the station. These paths have different timing, availability, and security requirements. An industrial router may serve the external path; it does not turn a remote WAN into a protection network.

This guide separates the station's process, bay, and station-control functions from its connection to a control center. It shows what to document before choosing a router, fiber service, cellular backup, or remote-access method.

Smart grids depend on communication between field equipment, substations and control centers. The useful design question is which information must arrive where, under which timing and failure conditions. Investment figures alone cannot define those requirements.

Within this system, the communication network connects generation, transmission, substations, distribution and authorized enterprise services. It enables monitoring, coordinated operation and the exchange of commands across defined boundaries.

A smart substation combines acquisition, protection, monitoring, control and supervisory backhaul. A trip or interlock requires its specified, validated real-time communication path. Some engineered protection schemes extend between substations; ordinary public or cellular backhaul cannot be assumed to satisfy their requirements.

However, communication systems also face challenges such as:

  • Electromagnetic interference and environmental exposure

  • Traffic growth and competing communication requirements

  • Cybersecurity threats and controlled remote access

This article follows those paths from process equipment through station systems to the control center. It compares architecture, redundancy and router deployment, then gives a planning and acceptance example rather than an unverified customer case.

Protection trips and interlocks need their specified, validated real-time path. A cellular connection or VPN does not establish that qualification.

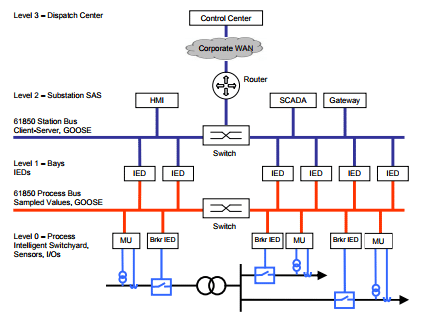

Overall Architecture of Smart Substation Communication Systems: Protocols and Standards

IEC 61850 provides a family of models and communication services for power-utility automation [1]. In a typical design, process-level devices and merging units exchange measurements, protection IEDs make decisions at the bay level, and station systems supervise and collect information. The actual architecture, protocols, and timing budgets come from the utility's engineering specification, not from the presence of a router.

IEC 61850 defines models and communication services for power-utility automation. A project selects the applicable parts, profiles and engineering rules. The standard family does not prescribe one universal router, bus arrangement or WAN topology.

Process, bay and station-control describe functional levels. Process bus and station bus describe communication arrangements within a station. The external dispatch or enterprise WAN is a separate boundary; it is not the second network in a universal “three layers, two networks” formula.

  • Functional levels: process, bay and station control

  • Internal communication: process bus and station bus where the design uses them

  • External communication: separately specified supervisory WAN and remote-access boundaries

Comparison of the Three-Layer Architecture

Functional level

Typical equipment

Main role

Communication requirement

Examples of services

Engineering check

Process

Sensors, merging units and interfaces

Acquire primary measurements and status

Specified sampling, timing and synchronization

Sampled Values; GOOSE where applicable

Signal mapping, time quality and loss behavior

Bay

Protection and control IEDs

Execute bay protection and control logic

Function-specific deadlines and availability

GOOSE; MMS where applicable

Subscriptions, interlocks and validated failure response

Station control

SCADA, HMI and application gateways

Supervision, aggregation and external interfaces

Defined data quality, access and application recovery

MMS internally; IEC 104 or DNP3 on selected interfaces

Separate gateway functions from routing and WAN security

Communication Media and Redundancy Design

  • Use media, switches and interfaces qualified for the actual environment and timing budget. Fiber can reduce conductive interference paths, but endpoints, power and installation remain relevant.

  • Choose redundancy by the application requirement. PRP sends copies over two separate LANs; HSR uses duplicate paths in the supported ring or mesh arrangement. RSTP and ERPS recover a topology after a failure and have configuration-dependent interruption.

  • For external backhaul, assess route diversity, carrier dependence, power, antennas and application recovery. Dual links do not establish a universal availability figure.

  • Document interoperability, maintenance and failure behavior across all participating devices.

Traditional vs. Smart Substation Architecture

Dimension

Conventional approach

Digitally networked approach

Design consequence

Signals

Hardwired analog and discrete circuits

Digitized measurements and networked events where adopted

Verify measurement quality, timing and dependency changes

Interconnection

Dedicated point-to-point wiring

Engineered device models and Ethernet services

Validate interoperability and configuration ownership

Monitoring

Local inspection and installed telemetry

Station supervision and permitted remote records

Define alarm quality, access and maintenance responsibility

Expansion

Additional wiring and interface work

Additional engineered devices and network capacity

Recheck protection, traffic, security and commissioning impact

Protection trips, interlocks and other hard real-time functions must follow the utility’s specified and validated paths, including any engineered inter-substation teleprotection. Ordinary public or cellular WAN service must not be presumed suitable. Define a safe operating state when an external connection fails, and validate any permitted supervisory commands against the control design.

Key Communication Links and Data Flows

Draw separate paths for sampled measurements or events within the station, SCADA telemetry to the control center, operator commands, engineering maintenance, and historian or analytics exports. For each, record endpoints, protocol, direction, timing, owner, and what happens during a link loss. IEC 61850 terms such as GOOSE, Sampled Values, and MMS describe different services; they are not interchangeable substitutes for a site-specific design [1].

Data Flow Path

Data Acquisition: Primary Measurements and Sampled Values

Measurements from the selected process interfaces or merging units are mapped to the configured consumers. Where Sampled Values are used, engineer the stream configuration, subscriptions, time synchronization and behavior when samples or time quality are lost.

Monitoring and Control: GOOSE and Station Supervision

GOOSE messages distribute defined events to subscribing IEDs according to the engineered protection and control scheme. Station supervision can use MMS services for its own data and controls. Treat these services separately and verify that each function retains its required dependencies and failure response.

Supervisory Upload: Station Gateway to Control Center

The station application or gateway selects the supervisory points and implements any required application mapping. The router forwards permitted IP traffic toward the control center over an approved path. Configure channel protection at the appropriate endpoints; neither routing nor an IEC 61850 label automatically encrypts the traffic.

Command Execution: Authorized and Validated Actions

An authorized control-center command passes through the permitted interface to the responsible station application and device. Validate point mapping, select/execute behavior where used, local/remote permissions, interlocks, acknowledgements and loss-of-link handling. Supervisory commands are not interchangeable with fast protection trips.

Build a traffic budget from the actual sampled-value configuration, event subscriptions, telemetry, disturbance records and maintenance transfers. Record sustained and peak rates, latency and loss limits, time synchronization requirements, retention and behavior during congestion. A station voltage rating alone does not establish daily data volume.

Performance Requirements and Verification

Stage

Information

Design decision

Acceptance evidence

Acquisition

Measurements, status and Sampled Values

Choose acquisition and time-quality requirements

Compare values, timestamps and missing-data indication

Processing

Protection/control events and station logic

Assign logic and communication deadlines

Test intended actions, blocked actions and failure states

Transmission

Telemetry, alarms and authorized commands

Specify WAN behavior, queues and session recovery

Observe end-to-end data and command handling under interruption

Analysis

Records, historian and optional analytics

Separate bulk exports from time-critical flows

Measure transfer load, data completeness and operational usefulness

Power Communication Network Design Principles: Deterministic and Secure

Start with the utility's approved network zones. Identify which station systems may reach the dispatch network, which remote users may enter, and where a firewall, VPN, access broker, or protocol gateway enforces the boundary. A VPN protects a configured path; it does not replace identity checks, least-privilege access, logging, or change control. NIST's OT guidance treats security together with the system's reliability, performance, and safety needs [2].

Specify reliability, real-time performance, resilience and security as measurable requirements for each flow. Redundant links, synchronization and encryption address different failure modes. Their contribution must be evaluated across the complete application path.

Principle

Design choice

Boundary or limitation

Verification

Reliability

Qualified devices, power and appropriate redundancy

Shared dependencies can defeat duplicate links

Inject relevant link, device and power failures

Real-time performance

Specified traffic engineering and time synchronization

QoS or TSN labels alone do not establish an end-to-end deadline

Measure latency, jitter, loss and time quality under representative load

Resilience and isolation

Defined zones, permitted paths and degraded operation

A VLAN alone is not complete access control

Test cross-zone permissions, recovery and operational fallback

Security

Controlled identities, least privilege, protected channels and logs

VPN encryption does not replace authorization or maintenance governance

Verify allowed/blocked access, revocation, logging and configuration control

Deployment Strategy for Industrial Routers in Power Systems

Select industrial routers against the installation environment and the utility’s qualification requirements. Verify temperature range, electromagnetic compatibility, surge immunity, power supply, interfaces and applicable certifications for the exact model. An industrial label alone does not establish substation suitability.

Key Functional Roles

  • Data forwarding: route explicitly permitted IP flows between station and dispatch networks.

  • Application gateway: use IEC 104, DNP3, MQTT or other conversion only when the exact gateway function and data mapping are documented.

  • Security boundary: verify firewall, VPN, identity integration and logging capabilities; IDS is not an assumed router feature.

  • Cellular connectivity and optional edge processing: verify modem bands, carrier service, software support and resources against the actual requirement.

Deployment Scenarios

Scenario

Primary backhaul option

Backup option

Deployment consideration

Selection evidence

Urban station

Approved fiber or utility WAN

Cellular where permitted

Check common ducts, power and carrier dependencies

Application recovery, interface compatibility and environmental qualification

Remote station

Available utility or carrier service

Independent carrier or satellite where justified

Survey radio coverage, antennas, power and service latency

On-site measurements and tested degraded operation

Major hub station

Utility-engineered diverse services

Approved diverse external paths

Coordinate security zones, capacity and maintenance windows

End-to-end failure tests and utility acceptance; no generic price assumption

The router or gateway at the station boundary should forward only explicitly permitted traffic.

A protocol gateway may also translate a defined interface, but ordinary IP routing does not itself convert IEC 61850 data into IEC 60870-5-104, DNP3, or MQTT.

Confirm that function against the exact equipment and configuration if translation is required.

If fiber is the primary external link and cellular is proposed as backup, test the real application during switchover. Record whether telemetry queues, sessions, addressing, and operator commands recover; do not infer continuity from two connected interfaces. Define how the station behaves when both paths are unavailable. Radio coverage, carrier service, antennas, power, and site conditions need measurement at the installation point.

Communication Topology and Scheme Comparison

A useful supervisory topology is:

Process equipment and merging units → protection/control IEDs → station SCADA or gateway → controlled station boundary → approved WAN → dispatch center. A separately engineered protection path may have different endpoints and requirements. Cellular backup, historians and analytics are additional permitted branches, not automatic dependencies of protection.

Compare topology choices against the required failure tolerance and operational responsibility:

Scheme

Mechanism

Possible use

Strength

Limitation

Recovery ring

RSTP/ERPS topology recovery as supported

Engineered station Ethernet

Alternate path after relevant failure

Interruption depends on protocol, topology and implementation

Star

Devices connect through a central switching point

Small or segmented networks

Clear paths and straightforward troubleshooting

Central devices and power can be shared failure points

PRP dual LAN

Duplicate frames over two separate LANs

Applications requiring supported seamless network redundancy

A surviving duplicate path can avoid network recovery time for a covered LAN failure

Requires compatible participants and truly separate LAN design; not an end-to-end zero-outage guarantee

Fiber with cellular backup

Supervisory WAN path change

External telemetry and permitted remote access

Alternative medium when qualified

Variable radio service, session/address changes and application interruption

HSR ring or mesh

Duplicate frames over supported HSR paths

Compatible redundant station networks

Redundant transmission for covered network failures

Requires compatible nodes and validated topology, capacity and failure scope

Redundancy must cover the failure you intend to survive. Duplicate interfaces alone do not prove application continuity.

110 kV Retrofit: Planning and Acceptance Example

Planning example only: consider a 110 kV station that needs to retain its validated protection functions while improving supervisory backhaul and controlled remote maintenance. No customer deployment, device count, savings or measured performance is asserted here.

Prepare the retrofit around the utility’s existing drawings, protection requirements and outage constraints:

  • Architecture: survey the existing station/process buses and protection scheme; retain approved real-time paths and define the supervisory gateway interface.

  • Resilience: choose internal redundancy and diverse external links according to required failure behavior; test application recovery and degraded operation.

  • Security and operation: define zones, allowed flows, named remote users, logs, configuration backups and the commissioning evidence.

Define acceptance evidence before selecting equipment:

Acceptance item

Baseline to record

Test to perform

Evidence to retain

Protection and control

Approved paths, dependencies and safe states

Exercise specified failures without relying on unqualified WAN

Utility-approved observations and exceptions

Supervisory data

Expected values, timestamps, alarms and queues

Deliver actual data to the control-center application

Endpoint records and data-quality results

WAN recovery

Service, address, session and recovery requirements

Interrupt and restore primary and backup paths

Observed gaps, recovery, operator indications and limits

Remote maintenance

Named users, destinations, authorization and logs

Test permitted, blocked and revoked access

Access records, final configuration and owner sign-off

A substation diagram can illustrate a possible boundary, but it does not prove a Wavetel product function, customer deployment or measured performance. Verify the actual station topology and exact equipment.

Use a site acceptance sheet rather than a generic “high availability” label:

  1. Compare the drawing with the installed ports, VLANs, routes, firewalls, time source, and application endpoints.

  2. Confirm protection and control continue to meet their specified, validated communication requirements during relevant WAN failures; include any engineered teleprotection dependencies.

  3. Test allowed and blocked remote flows with named users and recorded authorization.

  4. Send real supervisory data to the intended control-center application and verify values, timestamps, alarms, and command permissions.

  5. Interrupt and restore each external path; record observed recovery, data gaps, operator indications, and the response procedure.

  6. Keep the final configuration, test conditions, exceptions, and owner sign-off with the utility's change record.

Future Trends: 5G, TSN, and Energy Edge Computing

Technology

Possible role

Prerequisite

Boundary

5G

Qualified supervisory backhaul or dedicated engineered service

Coverage, service characteristics, security and application validation

Public cellular service is not assumed suitable for protection

TSN

Specified traffic scheduling and time-aware Ethernet

Compatible devices, profiles, synchronization and end-to-end engineering

A TSN-capable component does not qualify the whole system

Edge computing

Local filtering, record handling or approved analytics

Validated application, resources, data quality and maintenance ownership

Keep optional analytics from becoming an unexamined protection dependency

Assisted diagnostics

Prioritize alarms or suggest maintenance investigation

Representative evidence and human operating procedures

No guaranteed AI accuracy or autonomous recovery is asserted

Conclusion: Smarter and Safer Power Systems

A smart substation communication design should make each flow, owner, timing requirement and failure response explicit. Preserve the qualified protection and control paths while improving permitted supervisory connectivity.

IEC 61850 services, suitable redundancy, controlled WAN access and properly qualified equipment provide building blocks. TSN, private 5G and edge analytics need an engineering case and validation for the intended function; they do not automatically deliver autonomous recovery.

Start with the installed interfaces and acceptance criteria. Expand connectivity only when the resulting path, access boundary, maintenance procedure and evidence can be operated by the utility.

For a wider OT remote-access boundary, see IT/OT security and zero-trust architecture. Product selection follows only after these path and acceptance requirements are clear.

FAQ

Can a 5G router carry a substation protection trip?

Do not assume so. A protection path must meet the utility’s specified timing, reliability and failure requirements, including any engineered inter-substation functions. Use cellular only for functions explicitly qualified and approved for that service.

Does an industrial router convert IEC 61850 to IEC 104?

Not by definition. Routing moves IP packets between networks. Protocol conversion requires a documented gateway function, mapping, configuration, and end-to-end test for the exact devices and software.

What should be checked when a backup WAN takes over?

Verify application data, session and address behavior, alarms, operator visibility, and recovery time under the site's acceptance limits. A live modem indicator does not show whether the control-center application recovered.

Is a VPN enough for remote engineering access?

No. Use a controlled access path with named identities, authorization, allowed destinations, logging, and an agreed maintenance procedure. Review it with the station's operations and security owners.

What is the difference between process bus, station bus and external WAN?

Process bus and station bus organize communication within the station design; the external WAN connects approved station interfaces to dispatch or other authorized systems. Functional levels and network segments are related design concepts, not interchangeable names.

Are PRP and HSR the same as RSTP or ERPS?

No. PRP and HSR transmit duplicate traffic over supported redundant paths for their covered network failures. RSTP and ERPS restore a topology after a failure. Device compatibility, failure scope and complete application behavior still require validation.

References

bottom of page
