Introduction

In the wave of digitalization, the Industrial Internet of Things (IIoT) has become the core force driving the development of smart manufacturing, smart cities, and industrial automation. Positioned between industrial sites and the cloud, silently undertaking the responsibilities of data transmission, protocol conversion, and security assurance, is the industrial router. If hardware is the skeleton and flesh of the industrial router, then its software system is the "soul" that endows it with intelligence and vitality.

This article will deeply analyze the software composition of industrial routers from macro architecture to micro modules, revealing how it supports stable operation, efficient communication, and security protection in harsh industrial environments, while also looking forward to future development trends. Through practical cases, performance quantitative analysis, open-source ecosystem integration, system integration, and sustainable design, it further enriches the core value of the software, helping readers fully grasp this key technology.

1. What is Industrial Router Software?

Industrial router software is a complete set of programs, protocol stacks, and management systems running on industrial-grade hardware platforms. It is not just an operating system and a set of network protocols, but the core for achieving industrial site data acquisition, protocol conversion, security isolation, remote management, and edge intelligent computing.

Unlike traditional commercial router software that pursues ultimate forwarding performance, industrial router software emphasizes:

• High Reliability: Capable of self-diagnosis, automatic recovery, and link redundancy switching in harsh environments.

• Protocol Compatibility: Able to understand and convert multiple traditional industrial control protocols (such as Modbus, Profinet).

• Security: Provides industrial-grade isolation and tunnel encryption to protect OT (Operation Technology) networks.

• Edge Intelligence: Features containerization capabilities to run local data processing and analysis applications.

In short, industrial router software is the intelligent neural hub connecting the physical world (OT) and the information world (IT).

2. Core Value of Industrial Routers and the Importance of Software

In the wave of Industrial Internet of Things (IIoT) and smart manufacturing, industrial routers play a crucial role. Their core value lies in:

• Realizing Massive Device Networking: Connecting isolated industrial devices and sensors to the network.

• Ensuring Communication Stability and Security: Ensuring the continuity and encryption of data transmission in non-ideal industrial environments.

• Supporting Data Upload to the Cloud and Download: Establishing a bidirectional channel for data between the site and the cloud.

Software is the decisive factor in realizing these values:

2.1 Differences Between Industrial Router Software and Home Router Software

• Industrial Router Software: Applicable to fields such as industrial automation, intelligent transportation, and energy management. In these scenarios, network software needs to run stably, efficiently, and securely to ensure the continuity of production systems and business processes.

• Home Router Software: Primarily used for home network connections, meeting daily needs such as internet access, audio-visual entertainment, and smart homes. They pursue ease of use and cost-effectiveness, providing stable wireless coverage and internet access for home users.

We will use data, scenarios, and comparison tables to reveal the essential differences between the two in design goals, core software configurations, environmental tolerance, performance and reliability, and protocol support.

2.1.1 Design Goals

The design goal of industrial router software is real-time performance and reliability, such as supporting microsecond-level task scheduling, suitable for precise control of robotic arms; home software focuses on user-friendly interfaces, such as one-click Wi-Fi setup. Interruptions in industrial scenarios may lead to millions of dollars in losses, while home use only affects entertainment.

2.1.2 Core Software Configuration

Industrial software adopts RTOS (such as VxWorks) or industrial Linux kernels, supporting multi-core parallel processing and hardware acceleration; home software is mostly based on OpenWrt, with low memory usage but lacking industrial protocol stacks. Industrial configurations emphasize modularity, facilitating custom edge AI modules.

2.1.3 Environmental Tolerance

Industrial software includes built-in adaptive algorithms that can automatically reroute under network jitter or EMC interference; home software relies on stable environments and is easily affected by fluctuations. Industrial software supports virtual simulation testing from -40°C to 85°C to ensure no crashes.

2.1.4 Performance and Reliability & Protocol Support

Industrial software provides zero-interruption latency (<1μs) and IEC 62443 security certification, supporting industrial protocols like Modbus/OPC UA; home software has latency up to 10ms and only supports basic TCP/IP. In terms of reliability, industrial software has MTBF >1 million hours, while home software has <100,000 hours.

The following table compares mainstream industrial and home routers (based on 2025 data):

2.1.5 How to Determine If Industrial Router Software Is Needed?

If your scenario meets any of the following, industrial-grade must be used: network latency <5ms requirement, presence of cyber threats or high load, software interruption leading to safety risks or high losses.

The following video compares the performance of industrial and home router software under high load:

The rugged durability of industrial router hardware is the foundation, but what truly endows it with intelligence and resilience is its complex software system. Software determines whether the industrial router can effectively manage various industrial interfaces, stably transmit data, resist network attacks, and even perform local data preprocessing and analysis. Therefore, understanding the software composition of industrial routers is an important part of grasping core industrial IoT technologies.

2.2 Practical Cases and Industry Application Scenarios

To further illustrate the core value of the software, the following selects typical industry cases from 2025, showcasing the role of industrial router software in actual deployments. These cases are based on practices from vendors like Digi, Cisco, and Four-Faith, highlighting the implementation effects of protocol conversion, edge computing, and remote management.

• Smart Grid Application (Digi Solution): In smart city projects, Digi industrial router software integrates edge computing modules to achieve real-time monitoring of energy usage. It collects smart metering data via Modbus protocol and converts it to MQTT for cloud upload, optimizing energy distribution and integrating renewable energy. Result: Dynamic response to demand, reducing energy waste by 15%, supporting 5G low-latency transmission.

• Smart Manufacturing Predictive Maintenance (Berry Puyang and Cisco): In automotive production lines, industrial router software connects PLCs and sensors, transmitting vibration and temperature data to edge AI models for analysis. Cisco's AI-driven network management ensures zero interruptions, and Berry R300 series routers achieve remote networking in complex environments, reducing fault prediction rate by 30% and avoiding millions of dollars in downtime losses.

• Energy Power Remote Management (Four-Faith Certification Case): Four-Faith's full series of routers pass EU EN 18031 certification, with software supporting remote firmware updates and security audit logs. In rail transit scenarios, the software implements multi-link backup and intrusion detection, ensuring data transmission continuity and reducing operation and maintenance costs by 40%.

• 5G Industrial Wireless Router Application Scenarios: 5G industrial wireless routers integrate 5G access technology, WiFi, routing, switching, security, etc., supporting 5G/4G/3G networks, and can easily build high-speed, stable wired and wireless transmission networks, supporting IoT data collection and M2M communication, utilizing public 5G/4G/3G networks for long-distance wireless data transmission.

The following case comparison table summarizes the role of software modules in different scenarios:

3. Layers and Architecture of Industrial Router Software

The software system of industrial routers typically adopts a layered architecture, from underlying hardware drivers to upper-layer application services, each performing its duties and working collaboratively.

3.1 Operating System (OS) Layer: The Solid Foundation and Hard Real-Time Kernel

The "brain" of an industrial router is often a lightweight, high-efficiency embedded operating system.

3.1.1 Mainstream Choices

Linux and its derivative versions (such as OpenWrt, Buildroot, or vendor-customized distributions) are currently the most widely used choices. Linux, with its open-source nature, powerful networking capabilities, rich driver support, and high customizability, perfectly fits the needs of industrial routers. Developers can tailor the minimal and most efficient system based on specific hardware and application scenarios.

3.1.2 Real-Time Requirements

Certain time-sensitive industrial control applications may require the operating system to have stronger real-time capabilities.

• Deterministic Scheduling: Unlike the fair scheduling (CFS) of general Linux, RTOS or RT-Linux patches use mechanisms such as priority inheritance and preemptive scheduling to ensure deterministic response times for critical control tasks (hard real-time), rather than just high speed.

• Kernel Pruning and Optimization: Industrial software often uses tools like Buildroot/Yocto to prune unnecessary kernel modules, achieving minimal memory usage and faster boot speeds, supporting optimization to <50MB memory usage.

3.1.3 Fusion of Open-Source and Proprietary Software and Selection Guide

In 2025, the fusion of open-source and proprietary software has become a trend. Open-source like Red Hat's industrial Linux provides a flexible ecosystem, supporting rapid iteration and community-driven protocol stack extensions; proprietary like Siemens or Huawei customized systems emphasize stability and exclusive optimization, ensuring high security certification. For selection, refer to the following matrix table:

Path to Fusion: Embed open-source modules into proprietary kernels via containerization (e.g., Docker) for complementarity.

3.2 Driver and Hardware Abstraction Layer (HAL): Connecting the "Meridians"

This layer is the bridge for software-hardware interaction, responsible for managing and controlling various physical interfaces and hardware modules on the industrial router.

• Role: It encapsulates hardware details and provides unified interfaces to upper-layer software. Whether it's 4G/5G cellular modules, Wi-Fi modules, GPS positioning, or RS-232/485 serial ports, digital input/output (DI/DO), CAN bus, they are all managed by drivers in this layer.

• Multi-Wireless Sensor Network Support: Industrial-grade 5G wireless routers integrate wireless sensor networks like ZigBee and LoRa. The ZigBee network communication module tasks and LoRa network communication module tasks handle received wireless network data, process it, and forward it.

3.3 Core Functions and Network Protocol Stack: Building the "Pathway"

This is the "heart" of the industrial router, implementing its most basic network communication functions.

• Routing/Forwarding Functions: Including static routing, dynamic routing protocols (e.g., RIP, OSPF), NAT (Network Address Translation), DMZ (Demilitarized Zone), port mapping, etc., ensuring correct addressing and forwarding of data packets.

• Firewall and QoS: Fine-grained firewall rules based on IP, ports, and protocols to isolate different network zones; QoS (Quality of Service) mechanisms ensure priority transmission of critical industrial control data to avoid congestion.

• Layer 2 Functions: VLAN (Virtual Local Area Network) for network isolation and broadcast domain control; Link Aggregation to enhance bandwidth and reliability; Spanning Tree Protocol (STP/RSTP) to prevent network loops.

• Cellular Network Management: Dedicated software modules handle cellular module dialing, APN configuration, signal strength monitoring, reconnection on disconnection, data traffic statistics, and multi-carrier switching.

3.3.1 Performance Optimization and Quantitative Indicator Analysis

To ensure stability under high loads, industrial router software emphasizes performance benchmark optimization. Typical 2025 indicators include real-time network monitoring, intelligent routing selection, and load balancing, achieving <1% packet loss rate and dynamic resource allocation. For example, AI algorithms predict base station demands, optimizing edge node sharing and improving CPU utilization by 20%.

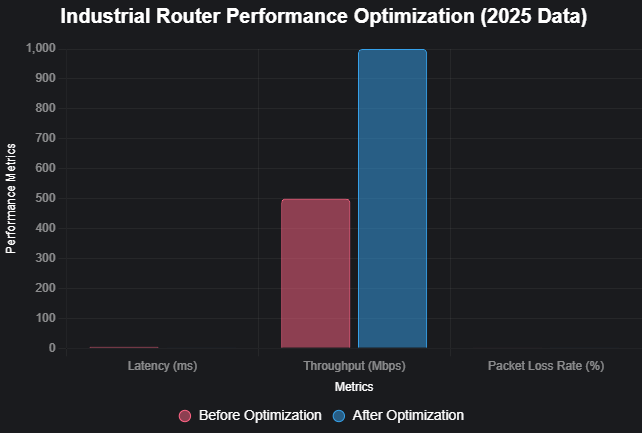

The following table shows performance comparison before and after optimization (based on 2025 test data):

Tools like Wireshark can be used for debugging to ensure MTBF >1 million hours.

4. Key Industrial Characteristic Software Modules

In addition to basic functions, industrial routers integrate numerous professional software modules optimized for industrial scenarios.

4.1 Industrial Data Acquisition and Protocol Gateway Module: Bridge for "Language" Communication

Industrial sites have a large number of devices using traditional industrial protocols, requiring routers for protocol conversion.

4.1.1 Core Working Principle of the Protocol Gateway

• Underlying Parsing: The software receives byte streams of industrial protocols like Modbus RTU and DL/T645 from physical interfaces such as RS485 and CAN, and decodes them into structured data items (e.g., coils, registers).

• Data Mapping and Modeling: The software maps these industrial data items to a unified data model (e.g., JSON format), performing data cleaning and preprocessing such as deduplication, filtering, and timestamp alignment.

• Upper-Layer Encapsulation: Finally, the data is encapsulated into IoT standard protocols (e.g., MQTT, CoAP, HTTP/HTTPS, OPC UA) for communication with cloud platforms or SCADA systems.






4.1.2 Industrial Dedicated Protocol Software Stack

• OPC UA Protocol Stack: As a new generation industrial standard, its software stack implements complex functions such as data publish/subscribe, security encryption, and identity authentication.

• Time Synchronization Protocol: The software supports PTP (Precision Time Protocol)/gPTP, playing a core role in Time-Sensitive Networking (TSN) to ensure precise synchronization of industrial control data.

4.2 Security Module: The "Shield" of Industrial Networks

Industrial networks face growing risks of cyberattacks, making security modules crucial.

4.2.1 VPN Support and Encryption Tunnels

• Core Role: Virtual Private Network (VPN) is the core for achieving remote secure access.

• Protocol Support: Industrial routers typically support multiple VPN protocols such as IPSec, OpenVPN, L2TP, etc.

• Application Scenarios: Capable of building end-to-end encrypted tunnels to securely connect remote office personnel, maintenance engineers, or cloud platforms to industrial sites.

4.2.2 Industrial-Grade Firewall/Intrusion Detection

• Deep Packet Inspection (DPI): Deep packet inspection for industrial control protocols (e.g., Modbus TCP) can identify and block malicious commands or abnormal traffic.

• Intrusion Detection System (IDS): Real-time monitoring of network behavior to detect potential threats.

4.2.3 Identity Authentication and Access Control

Supports authentication mechanisms such as 802.1X, RADIUS, TACACS+, etc., for strict identity verification and permission management of devices and users, ensuring only authorized entities can access network resources.

4.2.4 Firmware and System Integrity Protection

• Secure Boot: Ensures the router firmware has not been tampered with during startup, preventing malicious code implantation.

• Certification Standards: Typically required to meet industrial security certifications such as IEC 62443.

4.3 Reliability and Redundancy Modules: The Promise of Never Downtime

Industrial sites have extremely high requirements for device operation continuity, making software redundancy design key.

Link Redundancy:

• Dual WAN Ports/Multi-Link Backup: Supports automatic switching backup for wired Ethernet, 4G/5G cellular networks, Wi-Fi, even fiber optic links. When the main link fails, the system quickly switches to the backup link to ensure uninterrupted communication.

• VRRP/HSRP: Virtual Router Redundancy Protocol, achieving gateway-level redundancy between multiple routers; when one router fails, the other can immediately take over.

Self-Diagnosis and Recovery:

• Software Watchdog: Monitors the running status of key processes; when a process crashes or becomes unresponsive, it automatically restarts the process or the entire device to prevent system hangs.

• Connection Quality Monitoring: Real-time monitoring of cellular network parameters such as RSRP and SINR, automatically adjusting network connections or redialing based on quality.

• Remote Diagnosis and Logs: Provides detailed system logs, alarm information, and remote diagnostic tools for operation and maintenance personnel to quickly locate and resolve issues.

4.4 Industrial Data Acquisition and Protocol Conversion Module: Bridge for "Language" Communication

Industrial sites have a large number of devices using traditional industrial protocols, requiring routers for protocol conversion.

4.4.1 Protocol Gateway Functions

This is one of the core values of industrial routers. It can convert various on-site industrial protocols such as Modbus RTU/TCP, Profinet, OPC UA, DL/T645 into IoT standard protocols like MQTT, CoAP, HTTP/HTTPS, so that data can be understood and processed by cloud platforms or SCADA systems.

4.4.2 Edge Computing Support

More and more industrial routers are integrating edge computing capabilities. This means the router is no longer just a data pipeline but a small data processing center.

• Containerization Technology: Supports lightweight container technologies like Docker and LXC, allowing users to deploy customized applications (e.g., data preprocessing, local analysis, AI inference models) on the router. This reduces dependence on cloud bandwidth, improves response speed, and enhances data privacy.

• Data Caching and Local Storage: During network interruptions, data can be cached to local storage and automatically uploaded after network recovery to prevent data loss.

4.5 Remote Management and Operation & Maintenance Module: Efficient "Butler"

Industrial routers are deployed in large quantities and widely distributed, making efficient remote management crucial.

4.5.1 Centralized Cloud Platform Management

• Access Method: Connects routers to a unified device management cloud platform via standard protocols such as MQTT, HTTP/HTTPS.

• Core Functions: The cloud platform can achieve batch configuration, status monitoring, and fault alarms for all routers.

4.5.2 Local Management Interface

• Web GUI: Provides an intuitive graphical user interface for configuration and monitoring via browser.

• CLI (Command Line Interface): For professionals, providing more fine-grained configuration and diagnostic capabilities.

• SNMP: Simple Network Management Protocol, allowing third-party network management systems to monitor the router.

4.5.3 Remote Diagnostic Tools

• System Logs and Alarms: Provides detailed system logs and alarm information for operation and maintenance personnel to quickly locate and resolve issues.

4.6 Software Update and Lifecycle Management

To maintain long-term reliability and security of industrial networks, software must have efficient update mechanisms and strict lifecycle management.

4.6.1 Remote Firmware Upgrade (FOTA)

• FOTA (Firmware Over-The-Air): Allows remote firmware upgrades for routers via wireless networks, greatly reducing on-site maintenance costs.

• Batch Operations: Supports unified configuration and parameter issuance for large numbers of routers via cloud platforms or local tools, improving deployment efficiency.

4.6.2 Modular Design

Industrial software emphasizes modularity, facilitating custom edge AI modules or other functions, achieving flexible software iteration and function replacement.

4.6.3 Compatibility and Prunability

Adopts containerization technologies (e.g., Docker/LXC), decoupling the application layer from the underlying system for separate updates and management.

4.7 Integration with Ecosystem: Multi-Vendor Interoperability

Industrial router software emphasizes seamless integration with SCADA, MES, and PLC, ensuring interoperability in multi-vendor environments. Based on OPC UA and Matter protocols, the software achieves plug-and-play, supporting Thread border router functions. In Industry 4.0, edge computing modules bring data sources closer to processing for real-time analysis.

Challenges and Solutions: Protocol incompatibility can be resolved through middleware (e.g., MQTT Broker), complying with IEC 62541 standards. Example flowchart: Router software → OPC UA subscription → Cloud MES.

5. Software Development Trends and Future Outlook

The development of industrial router software is closely integrated with the overall trends of the Industrial Internet of Things, showcasing more powerful functions and smarter features.

5.1 Impact of SDN/NFV on Industrial Networks

• Software-Defined Networking (SDN): Separates the network control plane from the data plane, using centralized controllers for unified management and scheduling of industrial networks. This simplifies network configuration, improves flexibility and programmability; future industrial routers may become programmable forwarding nodes in SDN architectures.

• Network Function Virtualization (NFV): Decouples network functions like firewalls and VPN gateways from dedicated hardware, running them in software form on general servers or edge devices. This makes industrial network function deployment more flexible and improves resource utilization.

5.2 Edge Computing and Containerization

Edge computing opens up unprecedented development opportunities for the IoT field, not only significantly improving data processing efficiency and response speed but also effectively ensuring data privacy and security. Research shows that this technology has demonstrated successful application instances in multiple key areas such as smart homes, industrial automation, smart city construction, medical care, and agricultural intelligence. As technology continues to evolve and application scopes expand further, edge computing will play an increasingly core role in future IoT systems, no longer just a data transmission hub but a carrier of edge intelligence. Through containerization technologies (e.g., Docker, LXC), edge computing supports local deployment and running of customized applications (e.g., data preprocessing, AI inference models) to achieve more complex edge application deployment and management, such as local video analysis or predictive maintenance algorithm execution, bringing significant economic and social benefits to society.

5.3 AI and Intelligent Operation & Maintenance

• Fault Prediction and Self-Healing: Introduce AI algorithms to analyze big data on network traffic, device status, environmental parameters, etc., predict potential faults, and automatically take corrective measures to achieve network self-healing capabilities.

• Intelligent Optimization: AI can optimize network routing selection, bandwidth allocation, cellular network parameters, etc., to adapt to ever-changing industrial scenario demands and improve overall network performance.

• Intelligent Identification of Security Threats: AI-driven IDS/IPS can more effectively identify zero-day attacks and complex threats, enhancing the security protection level of industrial networks.

5.4 Software Innovation Trends

• Hard Real-Time Enhancement: Continuous optimization of operating systems, adopting real-time patches (e.g., RT-Linux) or dedicated real-time operating systems (RTOS) to ensure deterministic response times for critical tasks. The goal of industrial software is to provide zero-interruption latency (<1μs).

5.5 Sustainability and Green Software Design

With the ESG trend, 2025 industrial router software focuses on green low-carbon design. Through dynamic power management (e.g., QoS prioritizing low-power links) and AI energy-saving algorithms, it achieves 15-20% energy savings at the source. Complies with the "Made in China 2025" roadmap, supporting IPv6 low-power devices. Pie chart showing energy consumption proportions: Protocol stack 40%, edge computing 30%, security module 20%, others 10%.

6. User Role Perspective: Software Experience from Operation & Maintenance to Developers

To enhance practicality, industrial router software is designed from a user-oriented perspective, optimizing experiences for different roles.

• Operation & Maintenance Personnel Perspective: NetOps 2.0 supports automated diagnostics and visualized logs; H3C intelligent operation & maintenance reduces troubleshooting time by 50%, with one-click alarm push improving efficiency.

• Developer Perspective: SDK provides API hooks for easy custom plugins; AUTIN solutions achieve intelligent configuration, accelerating DevOps processes.

Pain Points and Solutions:

• Operation & Maintenance Pain Point: Slow fault location → **Solution**: Real-time monitoring + AI self-healing.

• Developer Pain Point: Complex integration → **Solution**: Modular SDK + container support.

7. Summary

The software composition of industrial routers is a complex and precise systems engineering. From the underlying operating system and drivers to upper-layer security, reliability, protocol conversion, edge computing, and remote management modules, they are interlinked, jointly building a communication hub that can adapt to harsh industrial environments and meet high-performance and high-security demands.

As the Industrial Internet of Things and smart manufacturing continue to deepen, industrial router software will evolve continuously toward more intelligent, open, and programmable directions. Understanding its software architecture is key for technical personnel, system integrators, and device manufacturers in the industrial field to grasp future industrial digital transformation. The "software core" of industrial routers is redefining the boundaries and possibilities of industrial networks at an unprecedented speed.
