Industrial Router DDNS Protocol Explained
Dec 17, 2025
10 min read
2
937
0
------From Technical Background and Evolution to Industrial-Grade Configuration Practice and Future Outlook
Table of Contents
DDNS Technical Background and Reasons for Its Emergence
2.1 Dynamic IP is the Norm in Industrial Cellular Networks
2.2 Limitations of Traditional DNS in Industrial Environments
How DDNS Works in Industrial Routers (In-depth Analysis)
4.1 Core Mechanism of Industrial-Grade DDNS
Core Value of DDNS in M2M / IoT Scenarios
Common DDNS Protocols and Implementation Methods for Industrial Routers
DDNS Network Architecture for Industrial Router / IoT Router
Essential Differences Between Industrial-Grade DDNS and Consumer DDNS
Detailed Practical Guide for Industrial Router DDNS Configuration
Typical Application Scenarios (Detailed)
10.1 Industrial Automation Remote Maintenance
10.2 Energy and Power Station Sites
Industrial Router DDNS Frequently Asked Questions (FAQ)
1. Introduction: Why Do Industrial Routers Need DDNS?
In today's rapidly developing application fields such as industrial automation, energy and power, water management, transportation, and smart cities, the remote access and management capability of on-site industrial equipment has become a key factor determining the overall operational efficiency, response speed, and reliability of the system. Industrial network architectures typically involve various specialized devices, including:
Industrial Router: Designed for harsh environments, supporting features like wide temperature range, vibration resistance, and dustproofing.
M2M Router (Machine-to-Machine Communication Router): Focuses on point-to-point communication between devices, commonly used in SCADA systems.
IoT Router: Supports massive device connectivity, integrates edge computing capabilities.
Cellular Modem: Built-in or external 4G LTE/5G modules providing wireless public network access.
The vast majority of these devices connect to the internet via cellular networks (4G/5G), rather than traditional fixed broadband lines. This leads to a core challenge: the dynamic nature of public IP addresses. To conserve IPv4 address resources, carriers typically employ dynamic allocation, CGNAT (Carrier Grade NAT), or session reset mechanisms, causing frequent changes in device IP addresses. These changes can occur upon each restart, signal fluctuation, or carrier policy adjustment.
Without the support of the DDNS (Dynamic Domain Name System) mechanism, the consequences would be severe:
Maintenance personnel cannot use fixed domain names or addresses for stable access to field devices, leading to low remote diagnosis efficiency.
Cloud platforms or management systems cannot actively push updates or pull data, relying on manual on-site intervention.
Remote debugging, program upgrades, and fault troubleshooting become highly dependent on physical intervention, increasing costs and risks.
In large-scale deployment scenarios, chaotic IP management can trigger system-level failures.
Therefore, in industrial environments, DDNS has evolved from an "optional feature" to a core foundational component of remote connectivity capability. It not only solves the dynamic IP problem but also deeply integrates with VPNs, firewalls, and cloud management platforms to form a complete industrial remote access solution.
2. DDNS Technical Background and Reasons for Its Emergence
2.1 Dynamic IP is the Norm in Industrial Cellular Networks
The prevalence of cellular networks (4G LTE/5G NR) in industrial applications is due to their advantages of wide coverage and flexible deployment. However, carrier IP assignment policies dictate that dynamics dominate:
Dynamic Public IP Assignment: Most SIM cards obtain shared or temporary public IPs.
CGNAT: Multiple users share one public IP, devices are actually in private address space.
Periodic Session Rebuilding: Network jitter, base station handover, or carrier maintenance causes IP resets.
IPv4 Address Shortage: Global IPv4 resource depletion promotes dynamic allocation and NAT usage.
For industrial routers deployed at remote or mobile sites, this means unpredictability of IP addresses: they may be stable in the short term but change frequently over long-term operation.
2.2 Limitations of Traditional DNS in Industrial Environments
Traditional DNS is designed for static environments:
Fixed servers (e.g., data centers).
Stable public IPs.
Predictable topology.
Industrial sites are the complete opposite: dynamic IPs, no fixed lines, harsh environments (high/low temperature, vibration). Traditional DNS cannot automatically adapt to changes, causing domain name resolution to fail.
Furthermore, industrial networks face challenges like limited bandwidth and latency sensitivity, requiring DDNS to be lightweight and efficient.
2.3 Core Solution Approach of DDNS
DDNS works by having a client (built into the router) monitor IP changes in real-time and send update requests to a DDNS server, achieving automatic mapping of the domain name to the latest IP. The update protocol is typically based on HTTP/HTTPS, ensuring compatibility and security.
3. Development History of DDNS Technology
DDNS is not exclusive to industry; its evolution path is clear:
Dial-up Era (1990s - early 2000s): Solved dynamic IP access to home servers for ADSL/dial-up users, giving rise to early services like DynDNS.
Broadband and SOHO Router Era: Demand for remote work in small businesses drove the integration of DDNS clients into routers.
Industrial Communication Era (2010s): Rise of M2M and SCADA systems led industrial routers to begin integrating DDNS, supporting Cellular access.
Industrial Internet and IoT Era (Present and Future): Deep integration with cloud platforms (e.g., Alibaba Cloud, AWS IoT, Huawei Cloud), support for IPv6, edge computing, zero-touch provisioning.
Today, DDNS has evolved from simple mapping to being part of the industrial connectivity ecosystem, supporting batch management, automatic registration, and security authentication.
4. How DDNS Works in Industrial Routers (In-depth Analysis)
4.1 Core Mechanism of Industrial-Grade DDNS
Industrial routers have a built-in DDNS client with rigorous and reliable logic:
IP Change Detection: Monitors the WAN port (cellular interface) in real-time, compares with locally cached IP.
Status Determination: Confirms successful dial-up, network stability (to avoid false updates).
Update Trigger: Immediate update upon IP change + periodic heartbeat (to prevent expiration).
Secure Update: Enforced HTTPS, Token/API Key authentication, IP source restriction.
Fault Handling: Update failure retry, logging, alarm push.
Compared to consumer-grade, industrial-grade emphasizes high availability: supports dual-SIM backup, seamless updates during failover.
4.2 Collaborative Relationship with Cellular Modem
Cellular Modem: Responsible for physical link establishment, SIM management, signal optimization.
Industrial Router: Handles network layer, application logic, including DDNS.
Collaborative Advantage: Modem senses signal changes, router immediately triggers DDNS updates, ensuring domain name is always available.
4.3 IPv6 DDNS Extension
With the spread of IPv6, DDNS supports AAAA record updates. Industrial routers can handle prefix delegation (PD) changes and automatically update IPv6 addresses.
5. Core Value of DDNS in M2M / IoT Scenarios
5.1 M2M Router Scenario
Enables direct connection of PLCs/RTUs, point-to-point data transmission, reducing reliance on dedicated lines.
5.2 IoT Router Scenario
Provides device addressability, supports cloud reverse control, massive concurrency.
5.3 Industrial Router Scenario
Large-scale consistent deployment, reliable unattended connectivity, integration with VPN.
6. Common DDNS Protocols and Implementation Methods for Industrial Routers
6.1 Supported DDNS Types
Mainstream industrial routers (e.g., Huawei, Four-Faith, USR IOT, Maple-R, Cisco, Advantech, Digi) support:
Public Services: No-IP, DynDNS, DuckDNS, 3322.org, PeanutHull (Oray), Cloudflare, Alibaba Cloud DNS, Tencent Cloud DNSPod.
Private/Vendor-Built: Device serial number binding, automatic registration (e.g., USR IOT platform, Huawei Cloud integration).
6.2 Industrial Advantages of Private DDNS
No manual configuration, batch activation.
Integration with device management platforms, higher security.
Support for enterprise-specific domain names.
7. DDNS Network Architecture for Industrial Router / IoT Router
Typical architecture:
Field Device → Industrial Router (DDNS Client) → Cellular Network → DDNS Server → Cloud Platform/Maintenance Terminal.
Supports multi-layer redundancy: dual DDNS, primary/backup updates.
8. Essential Differences Between Industrial-Grade DDNS and Consumer DDNS
Reliability: Industrial-grade supports wide temperature, vibration, long-term fault-free operation; consumer-grade focuses on simplicity.
Security: Industrial-grade enforces encryption, access control, audit logs; consumer-grade uses simple authentication.
Integration: Industrial-grade deeply integrates with VPN, SCADA, cloud; consumer-grade is independent.
Scale: Industrial-grade supports management of tens of thousands of devices; consumer-grade for single devices.
IPv6 Support: Industrial-grade is more mature, adapting to prefix changes.
9. Detailed Practical Guide for Industrial Router DDNS Configuration
9.1 Basic Configuration Instructions
Path is usually: Network → Remote Management → DDNS.
Key parameters:
Service Provider (No-IP, PeanutHull, etc.).
Username/Password/Token.
Hostname (domain name).
Update interval, heartbeat mechanism.
IPv4/IPv6 support.
9.2 Industrial-Grade Configuration Recommendations
Enforce HTTPS updates.
Restrict update source IPs.
Integrate with VPN/IPSec, allowing access only via domain name.
Enable status monitoring, SNMP alarms.
Test update delay, ensure <5 minutes.
Example (General steps):
Register DDNS account, obtain domain name.
Log in to router web interface.
Enable DDNS, select provider, enter credentials.
Save and test connection status.
10. Typical Application Scenarios (Detailed)
10.1 Industrial Automation Remote Maintenance
M2M Router + DDNS: Remote PLC programming, fault diagnosis.
10.2 Energy and Power Station Sites
Cellular + Industrial Router: Remote substation monitoring, no fixed lines.
10.3 Distributed IoT Device Management
IoT Router + Cloud DDNS: Batch reading of water meters, electricity meters.
10.4 Transportation and Smart Cities
Mobile Router: Real-time access for buses, surveillance cameras.
11. Security and Reliability Design (In-depth)
Industrial DDNS risks: Exposed attack surface.
Best practices:
Multi-layer Protection: DDNS + VPN Tunnel (IPSec/OpenVPN), avoid direct port exposure.
Access Control: Whitelists, source IP restrictions.
Log Auditing: Record updates, access behavior.
Encrypted Transmission: HTTPS + Token.
Redundant Design: Dual DDNS services, primary/backup SIM.
Firewall Integration: Only open necessary ports, combine with IDS/IPS.
Avoid common pitfalls: Relying solely on DDNS without VPN.
12. Future Trends and Technological Evolution
IPv6 Dominance: Prefix delegation dynamic changes, DDNS automatically updates AAAA records, reducing NAT dependency.
Integration with Industrial Internet: Zero-touch provisioning (ZTP), AI intelligent connection management.
Cloud-Native: Device cloud platforms with built-in DDNS, P2P replacing some scenarios.
Enhanced Security: Blockchain verification, zero-trust architecture.
5G/Edge Computing: Low-latency DDNS, supporting network slicing.
DDNS will evolve towards an "Intelligent Connectivity Service," becoming foundational for Industry 5.0.
13. Summary
In the modern industrial communication system, DDNS has transcended simple domain name resolution to become the cornerstone enabling remote, scalable, and highly reliable operation for Industrial Routers, M2M Routers, IoT Routers, and Cellular Modems. Combined with VPN, security policies, and cloud integration, properly deploying DDNS can significantly enhance industrial system resilience and efficiency. With the deepening of IPv6 and the Industrial Internet, DDNS will continue to evolve, aiding digital transformation. Practitioners are advised to prioritize industrial-grade equipment supporting private DDNS and build systems following security best practices.
14. Industrial Router DDNS Frequently Asked Questions (FAQ)
Below are the most common questions and answers regarding the use of DDNS with industrial routers (especially those using cellular networks like Industrial Routers, M2M Routers, IoT Routers). These questions stem from practical deployment experience, vendor documentation, and user feedback, aiming to help operation and maintenance personnel quickly troubleshoot and resolve issues.

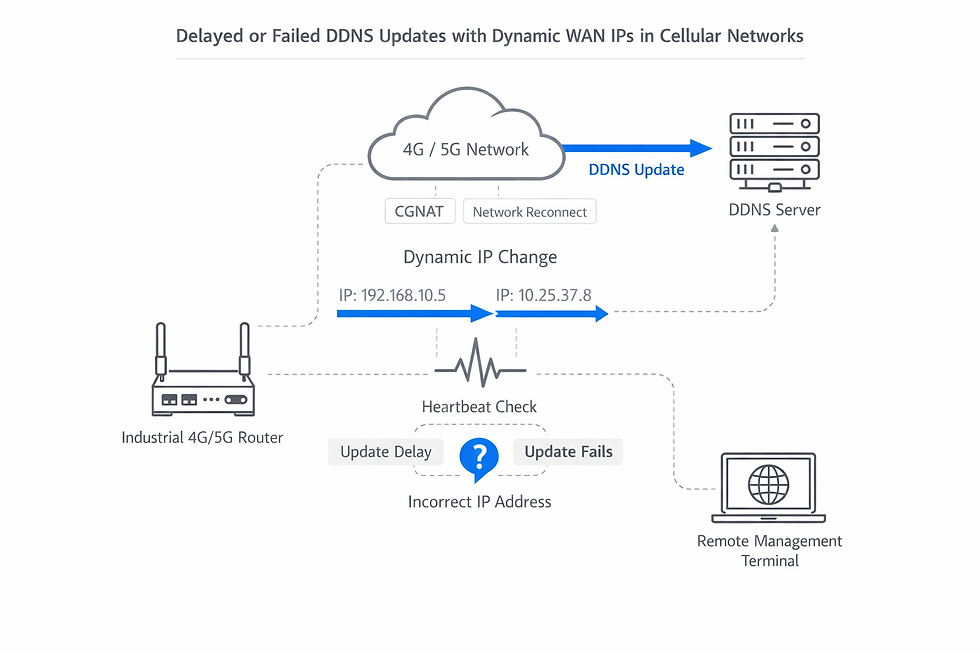

1. The WAN port IP of the industrial router is dynamic. Why are DDNS updates sometimes delayed or fail?
Reasons: Cellular network (4G/5G) signal fluctuation, carrier CGNAT, router restart, or heartbeat interval set too long.
Solutions:
Check router logs to confirm if the IP change detection mechanism is normal.
Set a shorter update interval (recommend 5-10 minute heartbeat).
Enable forced HTTPS updates and check network stability.
If using public DDNS (e.g., PeanutHull, No-IP), confirm the account is not rate-limited (free accounts have update frequency limits).
2. DDNS is configured successfully, but field devices cannot be accessed via the domain name?
Common Reasons:
WAN port IP is a private IP or behind CGNAT; DDNS is bound to the upstream public IP, but port forwarding is ineffective.
Port forwarding rules are not set correctly, or firewall is blocking.
DNS cache is not refreshed.
Solutions:
Confirm if the router's WAN IP is a public IP (compare with IP shown by searching "IP" on Baidu).
If behind CGNAT, traditional DDNS for direct remote access cannot be used. It is recommended to switch to vendor's private DDNS cloud platform, VPN tunnel, or intranet penetration solutions (e.g., PeanutHull Intranet Edition).
Manually configure port forwarding and test port openness (using online tools like canyouseeme.org).
Clear local DNS cache (command: ipconfig /flushdns).
3. Which DDNS service providers are supported by industrial cellular routers?
Mainstream industrial routers (e.g., Huawei, Four-Faith, USR IOT, Maple-R, Digi, Advantech, Cisco IR series) typically support:
Public: PeanutHull (Oray), No-IP, DynDNS, 3322.org, DuckDNS, Cloudflare, Alibaba Cloud DNS, DNSPod.
Private/Vendor-Built: Bound to device SN, automatic registration (e.g., USR Cloud, Huawei Cloud integration).
Recommendation: For industrial scenarios, prioritize vendor private DDNS for better stability, security, and zero configuration.
4. In a CGNAT environment, can DDNS still be used?
Traditional DDNS relies on a public IP and is ineffective under CGNAT (common with mobile cellular cards) because inbound connections are not possible.
Alternative Solutions:
Use vendor cloud platforms (e.g., USR IoT Platform, Huawei IoT Platform), where devices actively report and maintain heartbeat connections for reverse control.
VPN (e.g., IPSec/OpenVPN) + private DDNS.
Intranet penetration tools (PeanutHull Intranet Edition, Sunflower, ZeroTier).
5. DDNS update shows success, but the domain name resolves to the old IP?
Reasons: DNS propagation delay, cache issues, or update frequency too high causing service provider rate-limiting.
Solutions:
Wait for TTL time (usually minutes to hours).
Use nslookup or dig command to check resolution.
Avoid frequent updates (exceeding provider limits may cause temporary block).
6. How to improve the security of industrial DDNS?
Enforce HTTPS updates, enable Token authentication.
Do not expose ports directly; must be used in conjunction with VPN.
Set access source IP whitelist, enable log auditing.
Avoid free public DDNS becoming an attack surface; prioritize private services.
7. How to configure DDNS in an IPv6 environment?
Industrial routers increasingly support IPv6 DDNS (AAAA records).
Choose a provider supporting IPv6 (e.g., Cloudflare, DuckDNS).
Routers automatically handle prefix delegation (PD) changes, updating IPv6 addresses.
Note: Some carriers also use dynamic IPv6, requiring periodic heartbeats.
8. How do DDNS and VPN work together?
Best Practice: DDNS is only used for domain name resolution; actual access goes through VPN tunnel.
After configuring DDNS, use the domain name as the endpoint on the VPN server side.
Avoid direct port forwarding exposing services.
9. How to manage DDNS in large-scale deployments?
Use vendor batch management platforms supporting automatic DDNS binding to device SN.
Scripted configuration or zero-touch provisioning (ZTP).
Monitor DDNS status, set alarms (SNMP/email).
10. Common error log interpretations for DDNS failures?
"nohost": Username/domain name error.
"abuse": Updates too frequent, account blocked.
"badauth": Password/Token error.
Connection timeout: Network issue or service provider server failure.
If encountering problems, first check router logs and contact service provider support.
