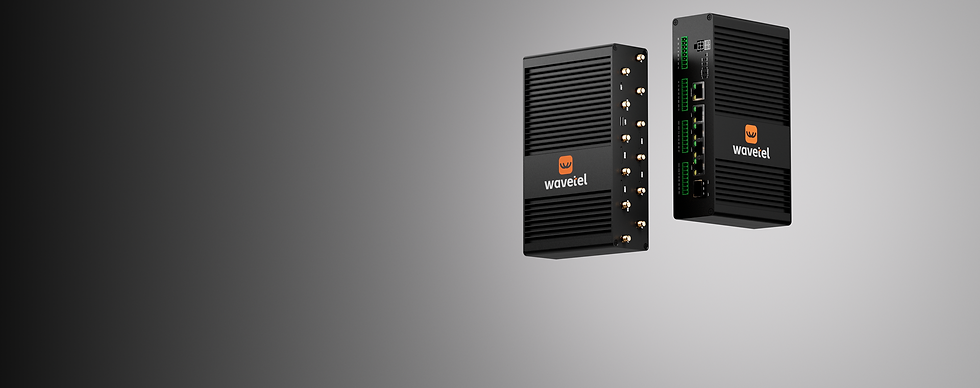

WR677-D
Dual-5G Cellular Industrial Router
Built-in dual-5G cellular modems, Wavetel WR677-D is a Cellular Industrial Router of robust and reliable performance. It supports dual-5G cellular connectivities, 2.5GE port, 4 GE ports, dual-band Wi-Fi6, serial ports and abundant I/O ports. WR677-D is perfect for industrial automation, remote monitoring and IoT applications.
Dual 5G
Wi-Fi 6
2.5GE + GE ports
WAN Failover
Product gallery
3D model
Product showcase
• 1*2.5GE +4*GE + 1*SFP + Wi-Fi AX3000 + Dual 5G
• Dual 5G Modems in Active-Active mode
• IEEE 802.11 a/b/g/n/ac/ax
• 1*RS232 + 1*RS485 + 11*DI + 2*DO + 1*AI+2*RELAY + 1*Ignition
• WAN failover between ETH WAN and Cellular WAN
• VPN: PPTP, L2TP, IPSec, GRE, OpenVPN, WireGuard
• Modbus, MQTT
• Management: Web GUI, SSH, TR069, SNMP, SMS, RMS
Wavetel Gateway Enables Efficient Cross-Regional Interconnectivity
Related use cases
Compatible accessories
Sim Eject Pin
Ethernet Cable
Wi-Fi SMA Antenna
GNSS SMA Antenna
Cellular SMA Magnetic Antenna
Cellular SMA Antenna

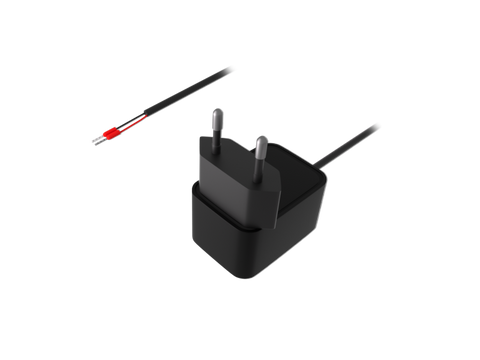

EU Type Power Adapter 12V/1A
Female DB9 Connector with Wires
FAQ
Does WR677-D have two 5G modems?
Yes. WR677-D has two 5G modems that support active-active operation and four SIM slots. Configure each cellular connection and its routing policy to match the deployment requirements.
What local-network interfaces does WR677-D provide?
WR677-D supports one 2.5 Gigabit Ethernet port, four Gigabit Ethernet ports, one SFP port and Wi-Fi 6 AX3000. Confirm the SFP module and local-network link requirements during deployment planning.
How should WR677-D be powered?
WR677-D can receive power through its four-pin Molex DC connector or an active PoE connection. Its PoE PD interface receives power from a compatible supply; it does not supply power to downstream PoE devices. Check the ordered unit’s power requirements before installation.
Can WR677-D switch to cellular if its Ethernet WAN fails?
Yes. WR677-D supports failover between Ethernet WAN and cellular WAN. Configure the primary and backup connections and the failure-detection policy for your deployment. Existing sessions may need to reconnect when the WAN changes.
Can WR677-D support VPN access and industrial data communication?
Yes. WR677-D supports WireGuard, OpenVPN and IPsec for VPN access, as well as Modbus TCP client/server and MQTT broker, publisher and gateway functions. Configure VPN routing and the required device data mapping for your application.
