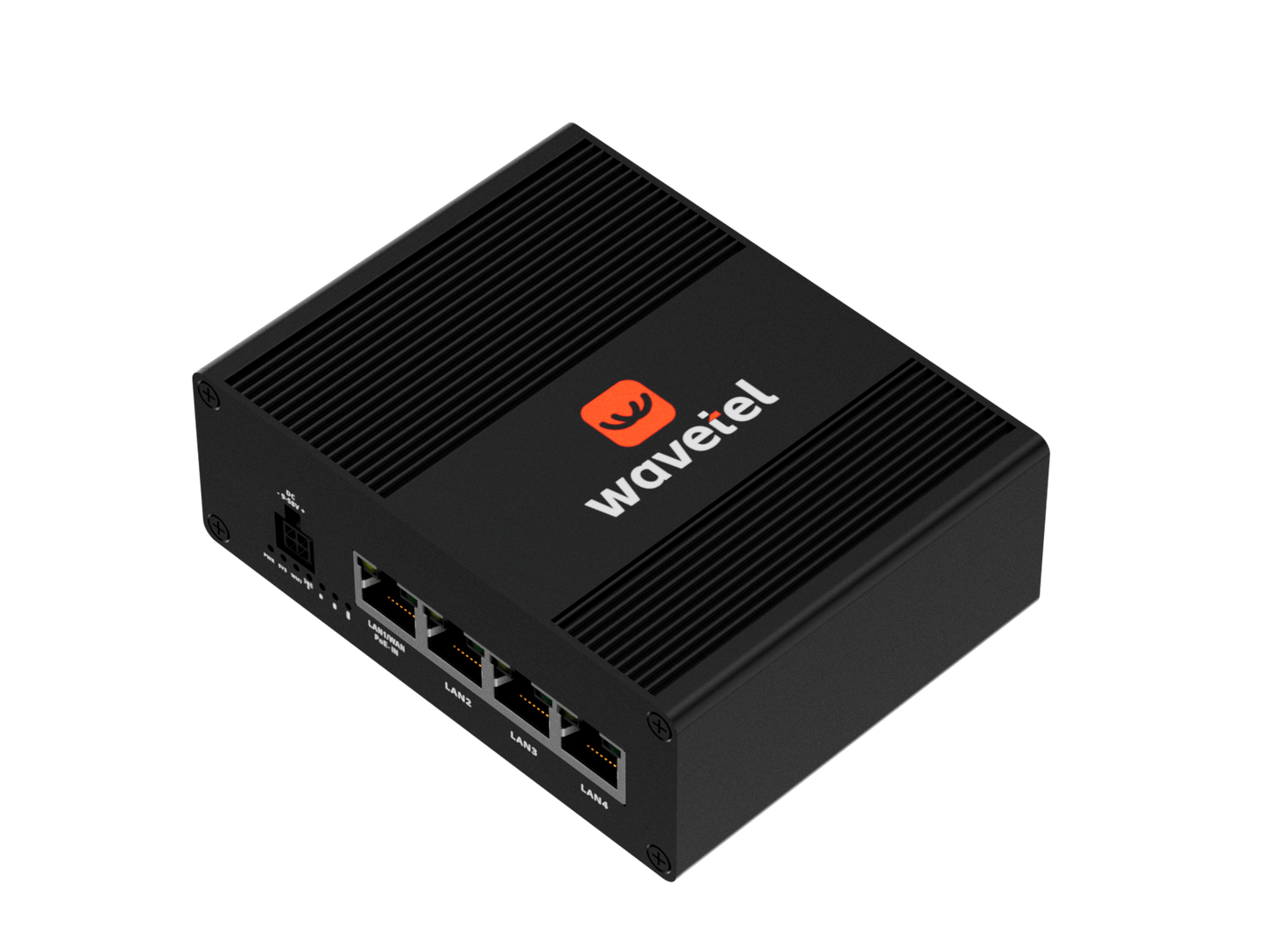

WR254
5G RedCap Industrial Router
5G RedCap Industrial Router
WR254 is an industrial router that supports 5G RedCap access, 2.4GHz Wi-Fi and 4 Ethernet ports. Complying with 3GPP Rel-17 RedCap, it can also work in LTE Cat 4 and 5G SA networks. With industrial-grade design, WAN failover and multiple mounting methods, it makes WR254 very flexible to deploy.

LTE Cat 4

LTE Cat 4

LTE Cat 4

LTE Cat 4
PRODUCT GALLERY
3D MODEL
PRODUCT SHOWCASE
Key Features
• 4*FE + 2.4GHz Wi-Fi + 5G Redcap
• 3GPP Rel-17 Complied, compatible with 5G SA and 4G LTE
• Support Passive PoE-PD on 1 ETH Port
• WAN failover between ETH WAN and Cellular WAN
• VPN: PPTP, L2TP, IPSec, GRE, OpenVPN, WireGuard
• Modbus, MQTT
• Management: Web GUI, SSH, TR069, SNMP, SMS, RMS
• Small footprint, support Wall-mounting and Din-Rail Mounting
Hardware
Ethernet
2*10/100Mbps Port
Cellular
LTE Cat 4
Wi-Fi
2.4GHz
Serial Port
1*RS232 or 1*RS485
I/O
1*DI(Dry Contact) + 1*DI(Dry Contact)/DO(Wet contact)
PoE
Passive PoE PD
Antenna
1*RP-SMA Wi-Fi Antenna
1*SMA Cellular Antenna
1*SMA for Cellular or GNSS
Sim Card Slot
2*4FF
GNSS
Optional
LED
Power, System, Wi-Fi, Cellular, Signal Strength
Power
2-pin Terminal Block
Reset Button
1
Grounding Screw
1
Housing Material
Aluminium
Ingress Protection
IP30
Weight
200g
Size
85*80*26mm
Operating Temperature
-40℃~75℃
Operating Humidity
10% to 90% non-condensing
Installation
Desktop, Wall-mounted, Din-rail
Software
Network
Multi-WAN: ETH WAN, Cellular WAN
WAN Failover
Protocols
PPPoE, TCP, UDP, DHCP, NAT, DNS, NTP, SMTP, Telnet,ICMP, HTTP, HTTPS, TLS, ARP, VLAN, SSH2, DDNS
Cellular
LTE Cat 4
SMS, Dual-APN, Band Lock, PIN Management, IP Passthrough
Sim auto-switch
Wi-Fi
Standard: IEEE 802.11b/g/n
Frequency: 2.4GHz
Security: WPA-PSK, WPA2-PSK, WEP
Encription: AES, TKIP
Wi-Fi Users: Up to 10 Users
Whitelist, Blacklist
VPN
PPTP, L2TP, IPSec, GRE, OpenVPN, DMVPN
MQTT
MQTT Broker, MQTT Publisher
MQTT Gateway
Data to Server
Modbus
Supported Mode: Server, Client
Supported Types: TCP
Supporetd Data Formats:8-bit INT / UINT, 16-bit INT / UINT, 32-bit float / INT / UINT, HEX, ASCII
Routing
Static Route, Policy Route, BGP, OSPF, RIP, NHRP, VRRP
Security
Firewall, DMZ, Anti-DDOS, Website Filtering, Access Control, 802.1x
Device Management
Web GUI, SSH, TR069, SNMP, SMS, RMS
