WR255

5G RedCap Industrial Router

WR255 offers cellular connectivity via LTE Cat 4 / 5G RedCap / 5G SA networks. Equipped with 2.4GHz Wi-Fi, 4 Ethernet ports, RS232, RS485 and 7 DI + 2 DO + 1 AI + 1 relay, WR255 allows for integrating more devices and systems into your network, and delivers enhanced operational efficiency and connectivity!

5G RedCap

Wi-Fi

Serial + I/O

WAN Failover

Product gallery

3D model

Product showcase

• 4*FE + 2.4GHz Wi-Fi + 5G Redcap
• 3GPP Rel-17 Complied, compatible with 5G SA and 4G LTE
• 1*RS232 + 1*RS485 + 7*DI + 2*DO + 1*AI+1*RELAY
• Support Passive PoE-PD on 1 ETH Port
• WAN failover between ETH WAN and Cellular WAN
• VPN: PPTP, L2TP, IPSec, GRE, OpenVPN, WireGuard
• Modbus, MQTT
• Management: Web GUI, SSH, TR069, SNMP, SMS, RMS

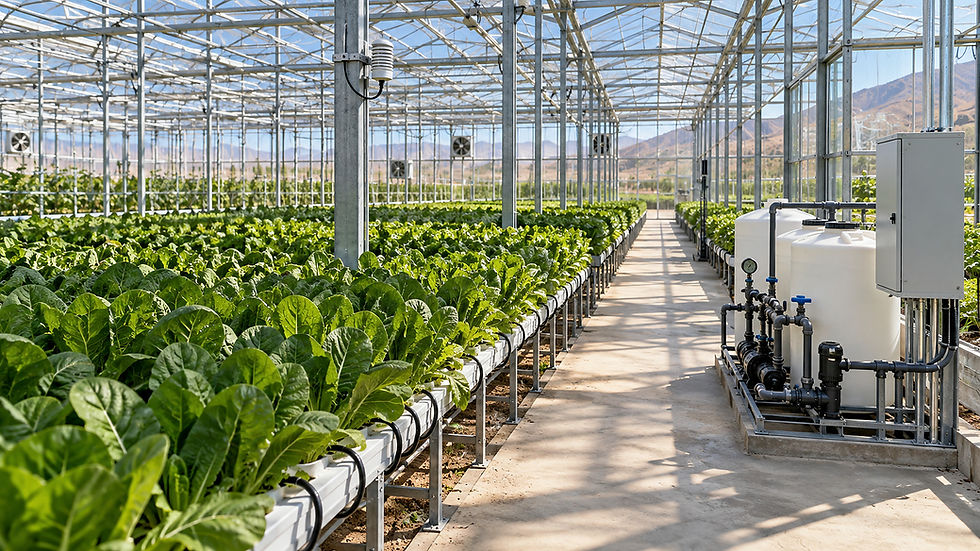

Smart Greenhouse Remote Monitoring and Control

Related use cases

Smart Greenhouse Remote Monitoring and Control

Smart Greenhouse Remote Monitoring and Control

Industrial

Smart Greenhouse Remote Monitoring and Control

Distributed Water Quality Monitoring

Industrial

Distributed Water Quality Monitoring

Reliable Connectivity for Mining Vehicles via Private 4G LTE Network

Energy & Utility

Reliable Connectivity for Mining Vehicles via Private 4G LTE Network

Reliable Remote Monitoring in Mining Operations with 4G Industrial Router

Energy & Utility

Reliable Remote Monitoring in Mining Operations with 4G Industrial Router

Reliable Remote Monitoring in Power Utilities with 4G Industrial Router

Energy & Utility

Reliable Remote Monitoring in Power Utilities with 4G Industrial Router

Compatible accessories

Sim Eject Pin

Sim Eject Pin

Ethernet Cable

Ethernet Cable

Wi-Fi SMA Antenna

Wi-Fi SMA Antenna

GNSS SMA Antenna

GNSS SMA Antenna

Cellular SMA Magnetic Antenna

Cellular SMA Magnetic Antenna

Cellular SMA Antenna

Cellular SMA Antenna

EU Type Power Adapter 12V/1A

EU Type Power Adapter 12V/1A

Female DB9 Connector with Wires

Female DB9 Connector with Wires

FAQ

Does WR255 support 5G RedCap and 4G LTE?

Yes. WR255 supports 5G RedCap based on 3GPP Release 17 and is compatible with 5G SA and 4G LTE. Verify operator support and regional frequency bands for the deployment location.

Which wired devices can connect to WR255?

WR255 provides four 10/100 Mbps Ethernet ports, one RS232 port and one RS485 port. Its listed I/O includes seven digital inputs, two digital outputs, one analog input and one relay.

How should WR255 be powered?

WR255 can receive power through its four-pin Molex DC connector or its passive PoE PD interface. The PoE PD interface receives power; it does not supply power to downstream PoE devices. Check the ordered unit’s input rating and use a compatible passive PoE supply before installation.

Can WR255 switch to cellular if its Ethernet WAN fails?

Yes. WR255 supports failover between Ethernet WAN and cellular WAN. Configure the primary and backup connections and the failure-detection policy for your deployment. Existing sessions may need to reconnect when the WAN changes.

Can WR255 support VPN access and industrial data communication?

Yes. WR255 supports WireGuard, OpenVPN and IPsec for VPN access, as well as Modbus TCP client/server and MQTT broker, publisher and gateway functions. Configure VPN routing and the required device data mapping for your application.

View WR255 features and specifications.
