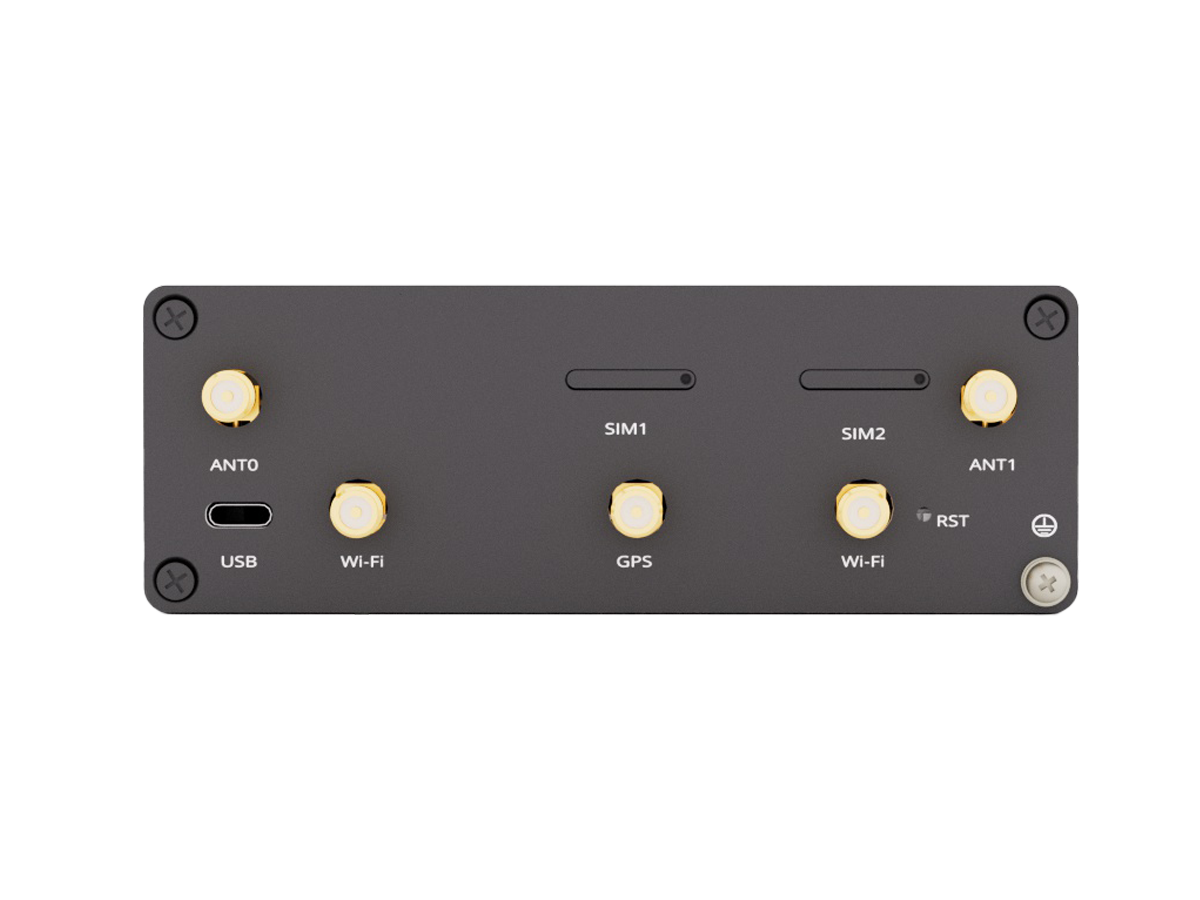

WR564

LTE-A Cat 6 Industrial Router

WR564 is a cellular industrial router providing LTE Cat 6 access. It supports 4 GE ports and Wi-Fi 6. With WAN failover, WR564 is able to provide high-speed and continuous access for Ethernet equipments.

LTE Cat 4

LTE Cat 4

LTE Cat 4

LTE Cat 4

LTE Cat 4

LTE Cat 4

LTE Cat 4

LTE Cat 4

PRODUCT GALLERY

3D MODEL

PRODUCT SHOWCASE

Key Features

• 3*GE +1*PoE-PD GE + Wi-Fi + LTE-A
• LTE-A Cat 6, up to 300Mbps on Cellular WAN
• IEEE 802.11 a/b/g/n/ac
• WAN failover between ETH WAN and Cellular WAN
• VPN: PPTP, L2TP, IPSec, GRE, OpenVPN, WireGuard
• BGP, OSPF, RIP, NHRP, VRRP
• Modbus, MQTT
• Management: Web GUI, SSH, TR069, SNMP, SMS, RMS

Hardware

Ethernet

2*10/100Mbps Port

Cellular

LTE Cat 4

Wi-Fi

2.4GHz

Serial Port

1*RS232 or 1*RS485

I/O

1*DI(Dry Contact) + 1*DI(Dry Contact)/DO(Wet contact)

PoE

Passive PoE PD

Antenna

1*RP-SMA Wi-Fi Antenna
1*SMA Cellular Antenna
1*SMA for Cellular or GNSS

Sim Card Slot

2*4FF

GNSS

Optional

LED

Power, System, Wi-Fi, Cellular, Signal Strength

Power

2-pin Terminal Block

Reset Button

1

Grounding Screw

1

Housing Material

Aluminium

Ingress Protection

IP30

Weight

200g

Size

85*80*26mm

Operating Temperature

-40℃~75℃

Operating Humidity

10% to 90% non-condensing

Installation

Desktop, Wall-mounted, Din-rail

Software

Network

Multi-WAN:  ETH WAN, Cellular WAN
WAN Failover

Protocols

PPPoE, TCP, UDP, DHCP, NAT, DNS, NTP, SMTP, Telnet,ICMP, HTTP, HTTPS, TLS, ARP, VLAN, SSH2, DDNS

Cellular

LTE Cat 4
SMS, Dual-APN, Band Lock, PIN Management, IP Passthrough
Sim auto-switch

Wi-Fi

Standard: IEEE 802.11b/g/n
Frequency: 2.4GHz
Security: WPA-PSK, WPA2-PSK, WEP
Encription: AES, TKIP
Wi-Fi Users: Up to 10 Users
Whitelist, Blacklist

VPN

PPTP, L2TP, IPSec, GRE, OpenVPN, DMVPN

MQTT

MQTT Broker, MQTT Publisher
MQTT Gateway
Data to Server

Modbus

Supported Mode: Server, Client
Supported Types: TCP
Supporetd Data Formats:8-bit INT / UINT, 16-bit INT / UINT, 32-bit float / INT / UINT, HEX, ASCII

Routing

Static Route, Policy Route, BGP, OSPF, RIP, NHRP, VRRP

Security

Firewall, DMZ, Anti-DDOS, Website Filtering, Access Control, 802.1x

Device Management

Web GUI, SSH, TR069, SNMP, SMS, RMS
