5G NSA&SA

Wi-Fi 6

Serial + I/O

WAN Failover

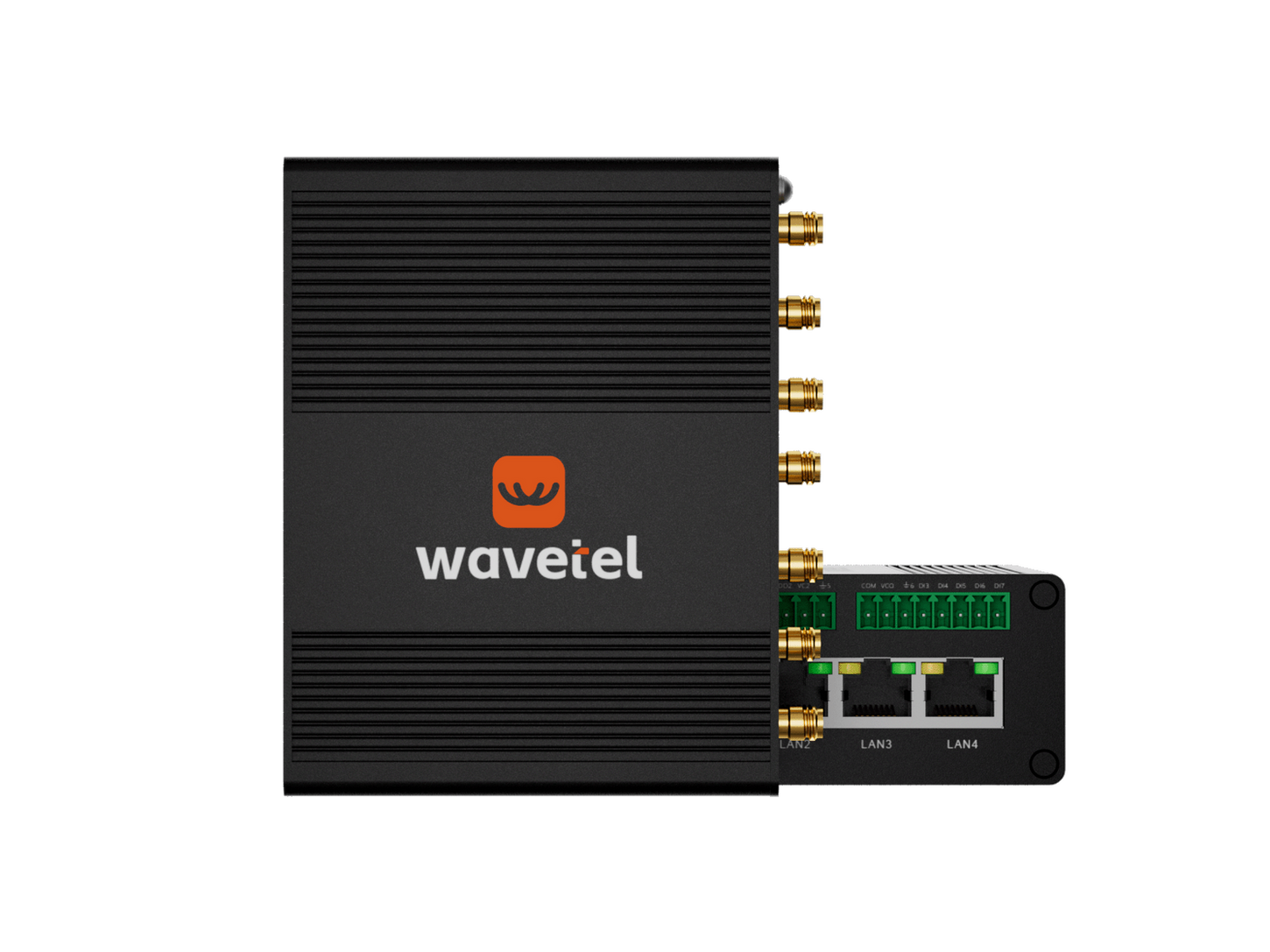

PRODUCT GALLERY
3D MODEL
PRODUCT SHOWCASE
Key Features
• 3*GE +1*PoE-PD GE + Wi-Fi + 5G
• 3GPP Rel-16 Complied, support sub-6GHz NSA and SA mode
• IEEE 802.11 a/b/g/n/ac
• 1*RS232 + 1*RS485 + 6*DI + 2*DO + 1*AI+1*RELAY
• WAN failover between ETH WAN and Cellular WAN
• VPN: PPTP, L2TP, IPSec, GRE, OpenVPN, WireGuard
• Modbus, MQTT
• Management: Web GUI, SSH, TR069, SNMP, SMS, RMS
Hardware
Ethernet
4*10/100/1000Mbps Port
Cellular
5G NR
Wi-Fi
Wi-Fi 6 AX1800
2.4GHz 2*2, 5.8GHz 2*2
Serial Port
2-pin Terminal Block/4-Pin Molex
I/O
6*DI + 2*DO + 1*AI+1*RELAY
PoE
Active PoE PD
Antenna
2*RP-SMA Wi-Fi Antenna
4*SMA Cellular Antenna
1* GNSS SMA
SIM Card Slot
2*4FF
GNSS
√
LED
Power, System, Wi-Fi, Cellular, Signal Strength
Power
4-Pin Molex
Reset Button
1
Grounding Screw
1
Housing Material
Aluminium
Ingress Protection
IP30
Weight
320g
Size
114*88*40mm
Operating Temperature
-40℃~75℃
Operating Humidity
10% to 90% non-condensing
Installation
Desktop, Wall-mounted, Din-rail
Software
Network
Multi-WAN: ETH WAN, Cellular WAN
WAN Failover, Load Balancing
Protocols
PPPoE, TCP, UDP, DHCP, NAT, DNS, NTP, SMTP, Telnet,ICMP, HTTP, HTTPS, TLS, ARP, VLAN, SSH2, DDNS
Cellular
5G Sub-6GHz, NSA&SA Mode
SMS, Dual-APN, Band Lock, PIN Management, IP Passthrough
Sim auto-switch
Wi-Fi
Standard: IEEE 802.11 a/b/g/n/ac/ax
Speed: WiFi AX1800
Frequency: 2.4GHz and 5GHz
Channel Bandwidth: 20MHz/40MHz/80MHz
Security: WEP, WPA-PSK, WPA2-PSK, WPA3
Encription: AES, TKIP
Wi-Fi Users: Up to 48 Users
Whitelist, Blacklist
VPN
PPTP, L2TP, IPSec, GRE, OpenVPN, WireGuard
MQTT
MQTT Broker, MQTT Publisher
MQTT Gateway
Data to Server
Modbus
Supported Mode: Server, Client
Supported Types: TCP
Supporetd Data Formats:8-bit INT / UINT, 16-bit INT / UINT, 32-bit float / INT / UINT, HEX, ASCII
Routing
Static Route, Policy Route, BGP, OSPF, RIP, NHRP, VRRP
Security
Firewall, DMZ, Anti-DDOS, Website Filtering, Access Control, 802.1x
Device Management
Web GUI, SSH, TR069, SNMP, SMS, RMS
